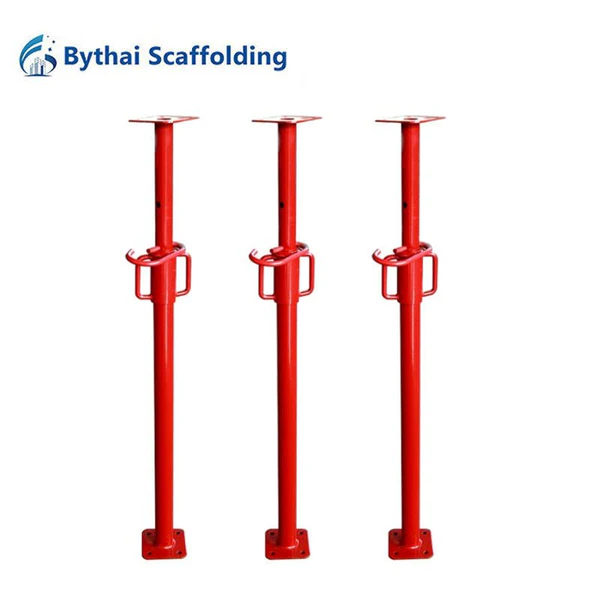

Heavy Duty Scaffolding Telescopic Props

Heavy-duty props are built for demanding construction tasks, where substantial weight needs to be supported. These props are used in large-scale projects like bridges, multi-story buildings, or industrial constructions.
Material: Q235 / Q355
Standard: EN 1065:1998+A1:2008
Surface Treatment: Painted / Powder Coated / Electro-galvanized / Pre-galvanized / Hot Dip Galvanized
Diameter: 40mm / 48mm / 56mm / 60mm / 76mm
Thickness: 1.6mm / 1.8mm / 2.0mm / 2.2mm / 2.4mm
SKU:

Heavy-duty props are built for demanding construction tasks, where substantial weight needs to be supported. These props are used in large-scale projects like bridges, multi-story buildings, or industrial constructions.
Advantages: High load-bearing capacity, making them ideal for significant projects. These props are extremely durable and can withstand harsh construction environments.
Disadvantages: Heavy and difficult to transport, requiring mechanical equipment for setup. They are also more expensive and overkill for smaller projects.
Application: In the construction of a multi-story parking garage, heavy-duty props are used to support the formwork of large concrete beams during the pouring and curing process.

Technical Data

Min Height(m)Max Height(m)Inner Tube (mm)Outer Tube(mm)Tube Thickness(mm)
1.62.948601.4-4.0
1.83.248601.4-4.0
2.03.548601.4-4.0
2.03.648601.4-4.0
2.24.048601.4-4.0
3.05.048601.4-4.0
3.56.048601.4-4.0
